Angle Grinder 115mm 4.5" 30 Grit Abrasive Grinding Wheel

Product Categories
Hebei Double Goats Grinding Wheel Manufacturing Co., Ltd
Contact Now

Angle Grinder 115mm 4.5" 30 Grit Abrasive Grinding Wheel

Brand Name : Grassland

Model Number : 100X6.0X16

Certification : ISO 9001,ISO14001 and MPA EN 12413

Place of Origin : China

MOQ : 10000 PCS

Price : US$0.4-0.49

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 300 thousand PCS PER day

Delivery Time : 30-60 Days

Packaging Details : shrink wrap-inner box-carton-enhanced pallet

abrasive : aluminium oxide SA

shape : round disc

Hardness : A24RBF

Max working speed : 80 M/S

Grit size : 24#,30#,46#,

Nets : 3 reinforced fiberglass nets

Application : Ferrous metal steel and Inox

Bonding agent : resin bonded

arbor size : 5/8 in

Disc type : Depressed center type

Contact Now

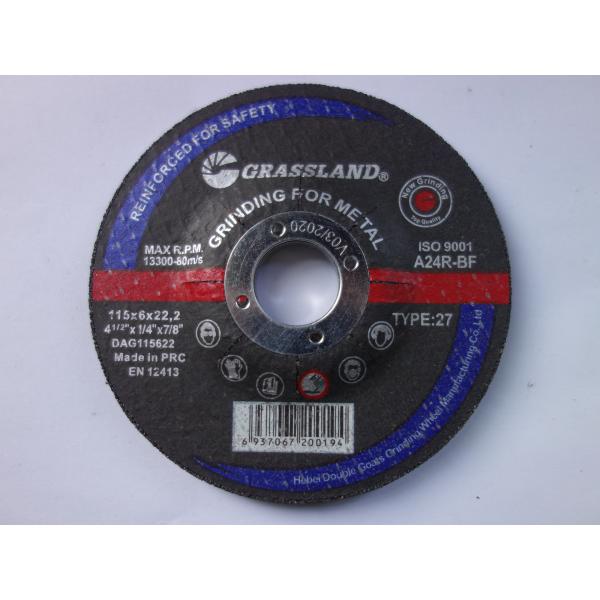

115mm Grinding discs for steel (115 x 6 x 22.2mm) 4.5" GRASSLAND

Products Description--

• Diameter: Ø 100mm / 4 1/4"
• Bore diameter: Ø 16 mm / 5/8"
• Thickness: 6.0 mm
Application: grinding wheel for free hand grinding mounted on angle grinders
Materials: Metal, construction steel, weldings
Technical characteristics: coarse grit structure, good stock removal, good life
Working speed: 80 m/s
All cutting and grinding wheels are tested to the requirements of EN 12413

GRASSLAND premium-grade wheels are manufactured with heat treated aluminum oxide grains,constructed with 3 high tensile strength fiberglass mesh and balanced to avoid vibration during use.,In addition, in high concentrations for smooth effortless use when grinding, deburring welds, or dressing and apply for metal, concrete, masonry, pipeline, asphalt, and stainless steel cutting.

Application: Grinding Steelwork Dressing Welds

Cutting wheel information:
Product Name 115X 6.0 X 22MM Abrasive Monocrystalline fused alumina
Hardness R Grade Net Standard Reinforced fiberglass
Max working speed

80 m/s

 OEM Service Acceptable
R.P.M 13300 Package

Kraft Carton and Pallet
Grit size 24#,30#,46#, HS Code 68042210

Certificate

MPA EN12413,ISO9001

 Loading Port Tianjin or else

-Depressed center Inox grinding discs

Item Code Dimension Dimension Speed Standard
(MM) (Inch) (r.p.m)
DAC1002516 100*2.5*16 4*3/32*5/8 15200 80m/s
DAC1003016 100*3.0*16 4*1/8*5/8 15200 80m/s
DAC1152522 115*2.5*22.23 4-1/2*3/32*7/8 13300 80m/s
DAC1153022 115*3.0*22.23 5*1/8*7/8 13300 80m/s
DAC1252522 125*2.5*22.23 6*3/32*7/8 12200 80m/s
DAC1253022 125*3.0*22.23 7*1/8*7/8 12200 80m/s
DAC1502522 150*2.5*22.23 4-1/2*3/32*7/8 10200 80m/s
DAC1503022 150*3.0*22.23 5*1/8*7/8 10200 80m/s
DAC1802522 180*2.5*22.23 6*3/32*7/8 8500 80m/s
DAC1803022 180*3.0*22.23 7*1/8*7/8 8500 80m/s
DAC2302522 230*2.5*22.23 9*3/32*7/8 6600 80m/s
--Flat inox cutting discs
Description of goods Item No Specification Unit PCS/CTN N.W./G.W.(KGS) CARTON SIZE(CM)
Flat cutting disc for inox/Alu 80m/s FSC0751009 T41-75X1.0X9.5MM PC 800 9/10 34*17*17
FSC0751695 T41-75X1.6X9.5MM PC 800 14/15 34*20*17
FSC1001016 T41-100X1.0X16MM PC 400 8.5/9.5 22*22*15.7
FSC1002016 T41-100X2.0X16MM PC 400 15/16 29.7*22*22
FSC1151022 T41-115X1.0X22.2MM PC 400 11/12 24.5*24.5*15.7
FSC1151622 T41-115X1.6X22.2MM PC 400 14/15 24.5*24.5*19.2
FSC1152022 T41-115X2.0X22.2MM PC 200 9.5/10.5 24.5*24.5*13.2
FSC1251022 T41-125X1.0X22.2MM PC 400 13/14 26.5*25.6*15.7
FSC1251622 T41-125X1.6X22.2MM PC 400 17/18 26.5*25.6*19.2
FSC1252022 TT41-125X2.0X22.2MM PC 200 10.5/11.5 26.5*26.5*13.2
FSC1501622 T41-150X1.6X22.2MM PC 200 12/13 32*32*11.7
FSC1502022 T41-150X2.0X22.2MM PC 200 16.5/17.5 32*32*13.2
FSC1801622 T41-180X1.6X22.2MM PC 200 20/21 37.5*19*22.7
FSC1802022 T41-180X2.0X22.2MM PC 100 10.5/11 37.5*19*13.2
FSC2301622 T41-230X1.6X22.2MM PC 50 8/9 24*24*11.7
FSC2302022 T41-230X2.0X22.2MM PC 100 18.5/19.5 24*24*25.7
